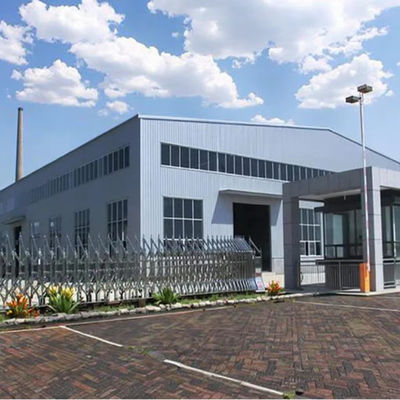

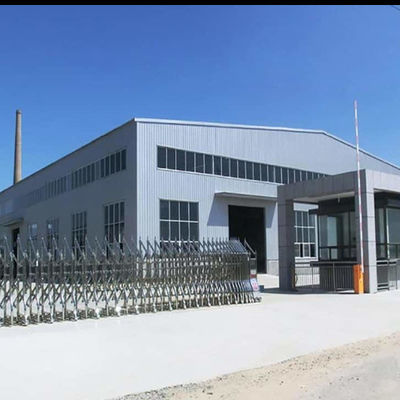

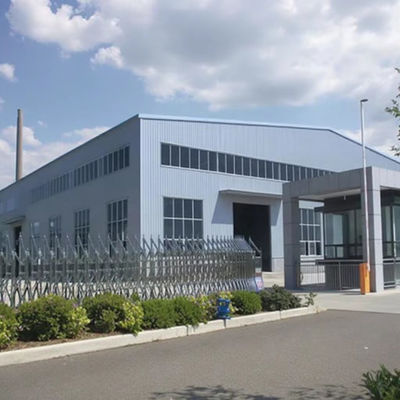

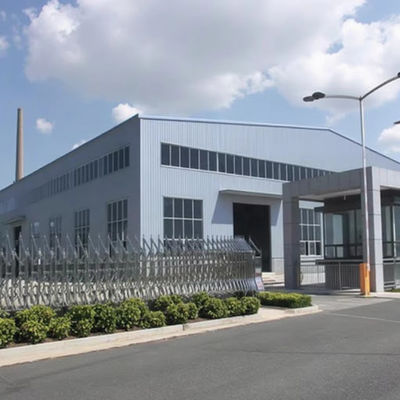

High Rigidity Workshop Steel Structure Multi Storey Building Construction ISO Standard
Product Overview
Steel structure buildings represent a modern construction approach where the entire building is constructed using steel components. This structure consists of steel beams, columns, trusses, and other components made from section steel and steel plates, connected through welding, bolts, and rivets.
Key Features
- Lightweight yet high-strength construction
- Streamlined design for rapid construction
- Excellent seismic resistance
- Flexible space configuration
- Durable and long-lasting materials
Structure Types

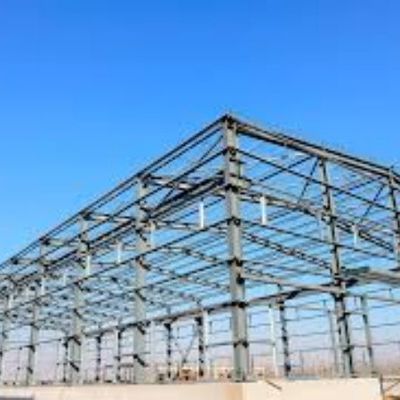

Portal Frame Structure: Simple load distribution with clear force transmission path, ideal for industrial and commercial buildings.
Steel Frame Structure: Offers flexibility and large open spaces, perfect for multi-story buildings like offices and shopping malls.
Steel Truss Structure: Composed of small cross-sectional tubes, suitable for large-span roofs and bridges.
Steel Grid Structure: Space framework with minimal stress, lightweight yet rigid, excellent for sports arenas and exhibition halls.
Material Specifications
| Component |
Specification |
| Main Structure (Column & Beam) |
Welded H section Steel, Steel Grade Q355B/Q235B |
| Column & Beam Connection |
High Strength Bolt |
| Column & Foundation Connection |
Pre-embedded Anchor Bolt |
| Roof Purlin & Wall Purlin |
C-shape or Z-shape Steel |
| Knee Brace |
Angle Steel |
| Brace |
Steel Rod |
| Tie Bar |
Steel Pipe |
Wall & Roof Panel Options
| Panel Type |
Recommended Applications |
| Color Steel Sheet |
Areas without winter, preferred for processing workshops and warehouses |
| Color Steel Sheet & Fiberglass Roll Insulation |
Areas with winter but low temperature requirements, for warehouses and workshops |
| Insulated Sandwich Panel |
Workshops and warehouses with temperature requirements |
| PU Insulated Sandwich Panel |
Facilities with high temperature requirements for working environment |
Packaging
Frequently Asked Questions
1. What kind of customer service do you provide?
We offer comprehensive customer service, including basic design, supporting facilities procurement, and the option to dispatch installation guidance.
2. How about the customer reviews of your company?
We are proud to have received consistently high five-star reviews from our customers, which stand as a testament to our commitment to quality and service.
3. What is your quality inspection process like?
Our strict quality inspection process ensures that every product meets the highest standards of excellence. From raw materials to finished goods, each stage is meticulously inspected to guarantee superior quality.
4. Can you send engineers or a whole team to install my project?
We will give detailed installation drawings for free. We can send engineers as an installation director or a team upon request.
5. Do you accept container loading inspection?
You are welcomed to send an inspector, not only for the container loading, but any time during the production time.
6. Do you offer designing service for us?
Yes, we could design full solution drawings as your requirements. By using AutoCAD, PKPM, MTS, 3D3S, Tarch, Tekla Structures (Xsteel) and etc. we can design complex industrial buildings like office mansions, super markets, auto dealer shops, shipping malls, 5-star hotels.
7. What is the delivery time?
Delivery time depends on order quantities. In general, the delivery time to the nearest seaport in China will be 40 days after receiving the deposit.
8. How can I get a quotation for my projects?
You can contact us by email, phone, Trade manager and so on 24*7 and you will get a reply within 8 hours.
9. What certifications has your company passed?
Our company has passed professional certifications such as IOS9000, CE, and SGS, ensuring that our products and services meet international standards.
