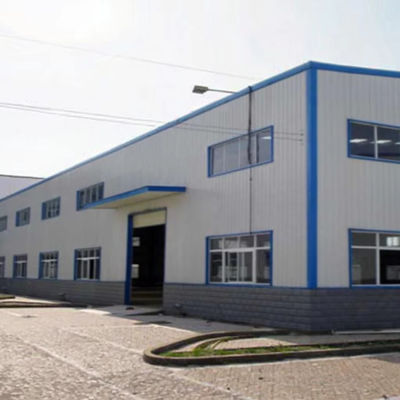

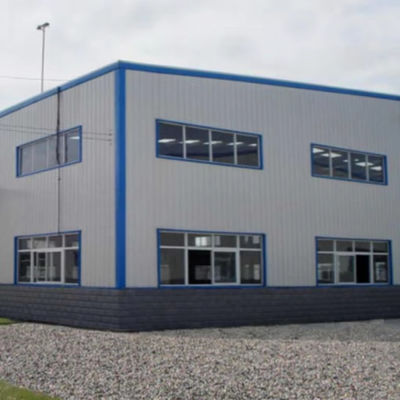

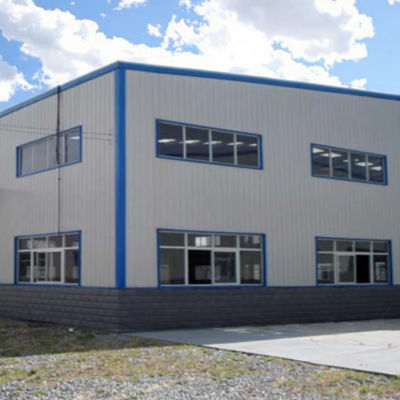

Contemporary Workshop Steel Structure Prefab Wide Span Steel Buildings Earthquake Proof
Specification
Steel-structured buildings represent an innovative approach to construction compared to traditional buildings. The entire structure is made of steel, primarily consisting of steel beams, columns, trusses, and other components fabricated from section steel and steel plates. Components are connected using welding, bolts, or rivets. Due to their lightweight and simple design, steel structures are widely used in large factories, stadiums, super-tall skyscrapers, and other sectors.
Primary Structure Types

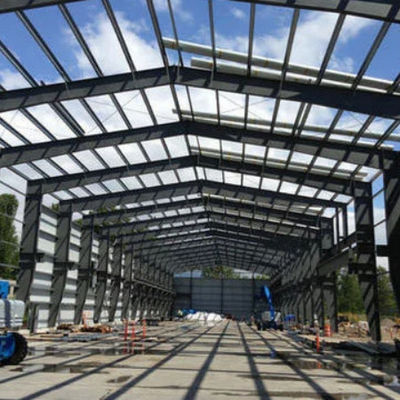

- Portal Frame Structure: Simple load-bearing mechanism with clear force transmission paths and fast construction speed. Ideal for industrial and civil buildings including industrial facilities, commercial properties, and public facilities.
- Steel Frame Structure: Offers flexibility for larger open spaces. Commonly used in multi-story and high-rise buildings like commercial offices, shopping malls, and conference centers.
- Steel Truss Structure: Uses small cross-section tubes to form larger components. Suitable for buildings with large spans or significant height, including large-span roofs, bridges, and towers.
- Steel Grid Structure: Highly indeterminate spatial framework with minimal space stress, lightweight construction, high rigidity, and excellent seismic resistance. Typically used in gymnasiums, exhibition halls, and hangars.
Material Description
| Main Structure |
Description |
| Column & Beam |
Made of welded H section Steel, Steel Grade Q355B/Q235B |
| Column & Beam Connection |
High Strength Bolt |
| Column & Foundation Connection |
Pre-embedded Anchor Bolt |
| Secondary Structure |
Description |
| Roof Purlin & Wall Purlin |
C-shape or Z-shape Steel |
| Knee Brace |
Angle Steel |
| Brace |
Steel Rod |
| Tie Bar |
Steel Pipe |
Wall and Roof Panel Options
| Panel Type |
Applicable Regions and Scenarios |
| Color Steel Sheet |
Areas without winter, preferred for processing workshops and warehouses |
| Color Steel Sheet & Fiberglass Roll Insulation |
Areas with winter but with low temperature requirements, preferred for warehouses and workshops |
| Insulated Sandwich Panel |
Workshops and warehouses with temperature requirements |
| PU Insulated Sandwich Panel |
Workshops, warehouses and public facilities with high temperature requirements |
Product Packaging
Frequently Asked Questions
What kind of customer service do you provide?
We offer comprehensive customer service, including basic design, supporting facilities procurement, and the option to dispatch installation guidance.
How about the customer reviews of your company?
We are proud to have received consistently high five-star reviews from our customers, which stand as a testament to our commitment to quality and service.
What is your quality inspection process like?
Our strict quality inspection process ensures that every product meets the highest standards of excellence. From raw materials to finished goods, each stage is meticulously inspected to guarantee superior quality.
Can you send engineers or a whole team to install my project?
We will give detailed installation drawings for free. We can send engineers as an installation director or a team upon request.
Do you accept container loading inspection?
You are welcomed to send an inspector, not only for the container loading, but any time during the production time.
Do you offer designing service for us?
Yes, we could design full solution drawings as your requirements. By using AutoCAD, PKPM, MTS, 3D3S, Tarch, Tekla Structures (Xsteel) and etc. we can design complex industrial buildings like office mansions, super markets, auto dealer shops, shipping malls, 5-star hotels.
What is the delivery time?
Delivery time depends on order quantities. In general, the delivery time to the nearest seaport in China will be 40 days after receiving the deposit.
How can I get a quotation for my projects?
You can contact us by email, phone, Trade manager and so on 24*7 and you will get a reply within 8 hours.
What certifications has your company passed?
Our company has passed professional certifications such as IOS9000, CE, and SGS, ensuring that our products and services meet international standards.
